Ergo Ratchet Straps

Ergonomic Ratchet Tie-Down Straps, Ergo pull down ratchet strap, 5,000kg Ergo Ratchet Straps

Product Description:

Our Ergo Ratchet Straps is a new way for cargo lashing safety control, it had long been handled and require less strength when lashing loads. It relieves the back and arm of the operator, a long handle designed for high tension force(STF).

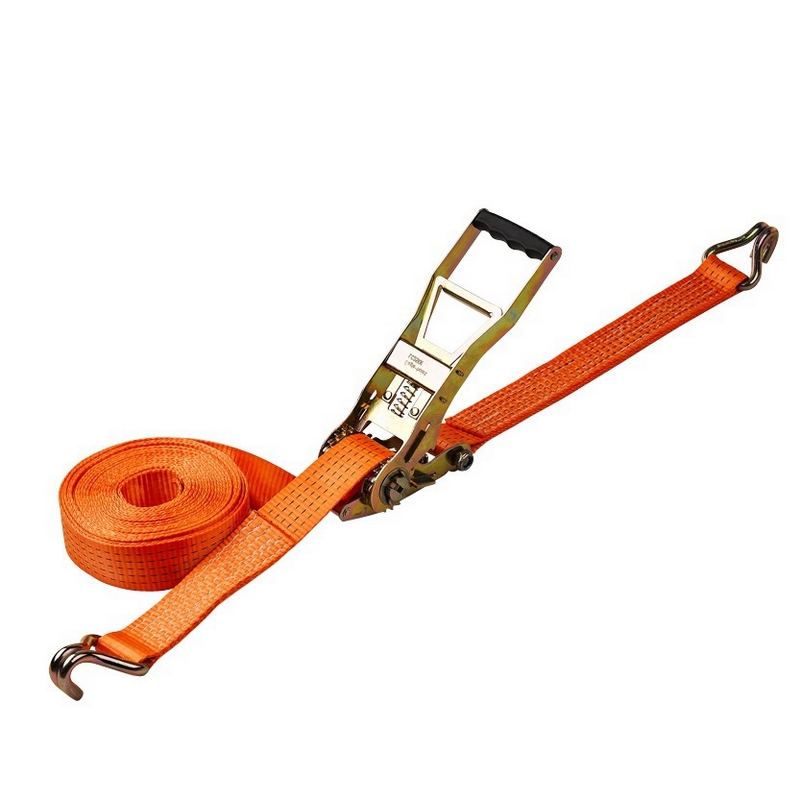

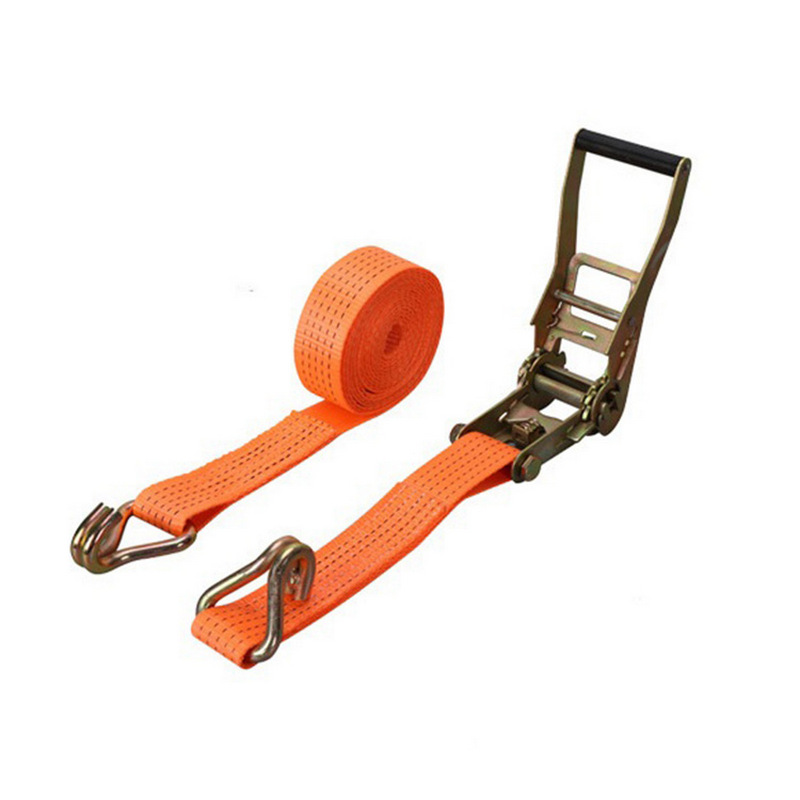

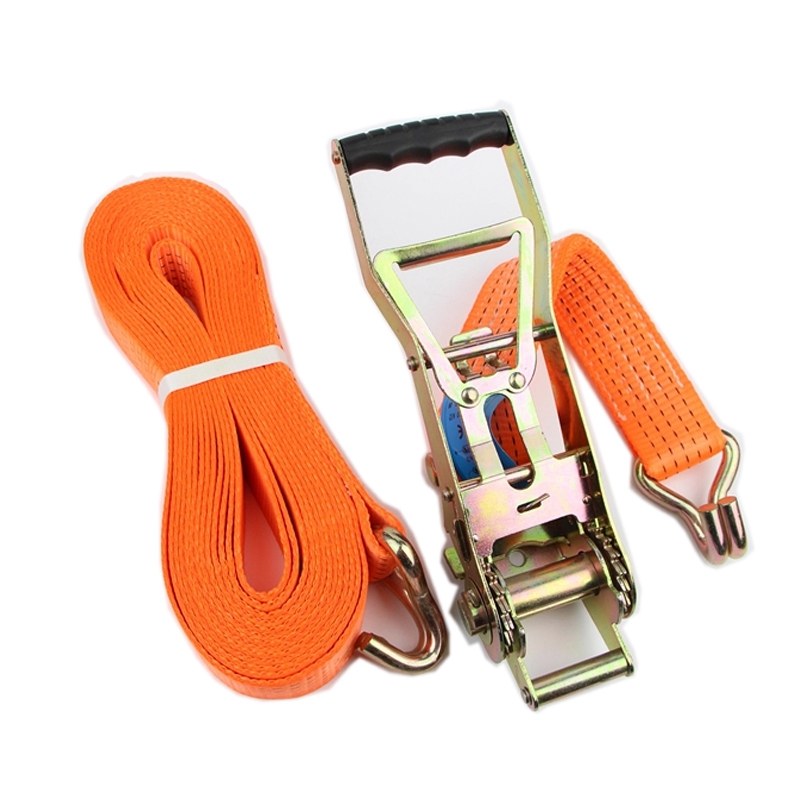

Our 5,000kg Ergo Ratchet Straps are combined by two parts, with a break strength of 5,000kgs. The longer part is heavy duty claw hook with 50mm high tenacity polyester webbing. The shorter part includes a claw hook and a long handle self-locking Ergonomic ratchet mechanism.

The lengths 6m, 8m, 10m, 12m or 15m are widely used. Customize Length and color are also available.

ergo ratchet straps 9

Product Parameters:5,000kgs ERGO Ratchet Straps

Item Code Size Surface Treatment WLL

(Working Load Limit)


(Break Strength)

Standard Color Option Hook Option
CY-TD-RB-5001E 2 inch Ergo type handle 2500daN 5000daN EN12195-2

AS/NZS 4380:2001


ergo ratchet straps 10 ergo ratchet straps 11
CY-TD-RB-5002E Ergo type handle 2500daN 5000daN
CY-TD-RB-5003E Ergo type handle 2500daN 5000daN

Application and After-Sales Service:

Our Ergo Ratchet Straps is a new strap to secure loads. Unlike traditional ratchet straps, it will save energy while getting a higher STF. Much safer and smarter.

Ergo Ratchet buckles are available separately.
The whole ratchet tie down and OEM is welcomed.
Kindly contact us for more details.

about usergo ratchet straps 8
