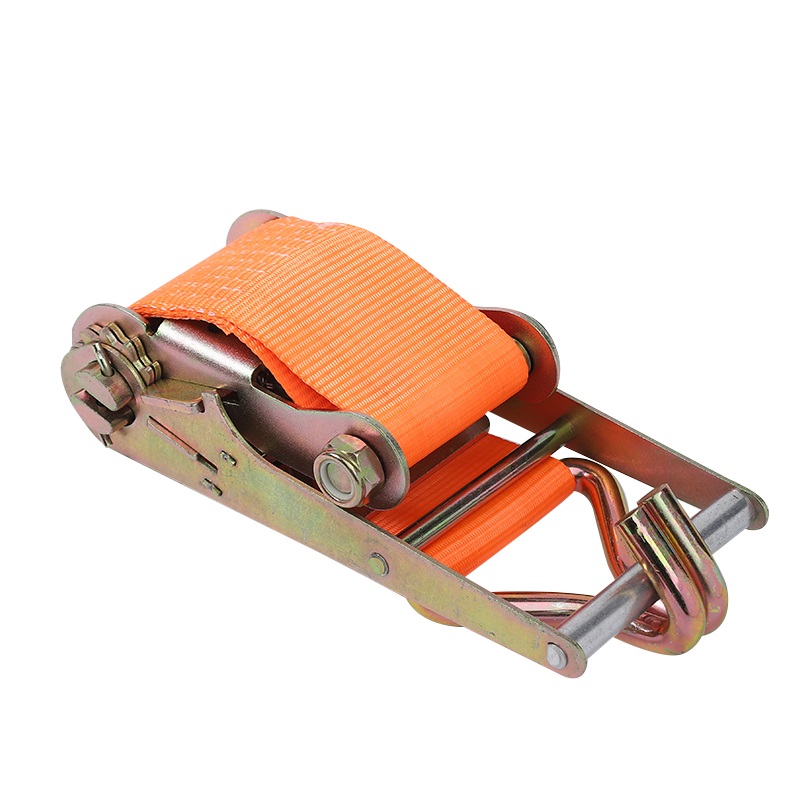

3 inch heavy duty ratchet strap is heavy duty application for cargo security. Usually, straight aluminum ratchet handle with 75mm width AAA grade polyester webbing. Break force rated up to 8-10 tons. As it is 75mm width, wider than 50mm, tension is evenly distributed everywhere of the load, so much safer, especially for heavy load.

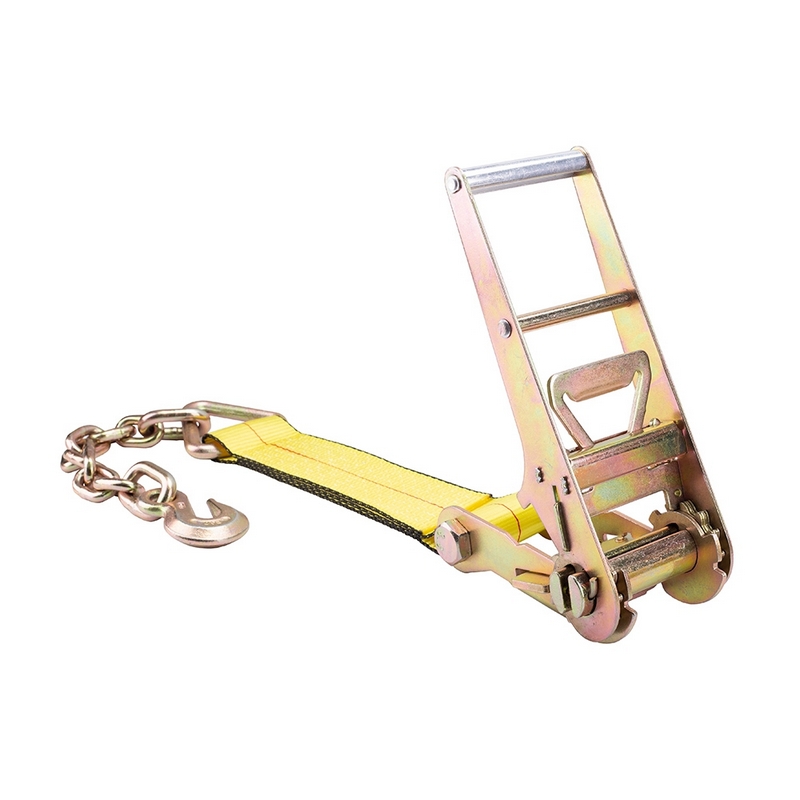

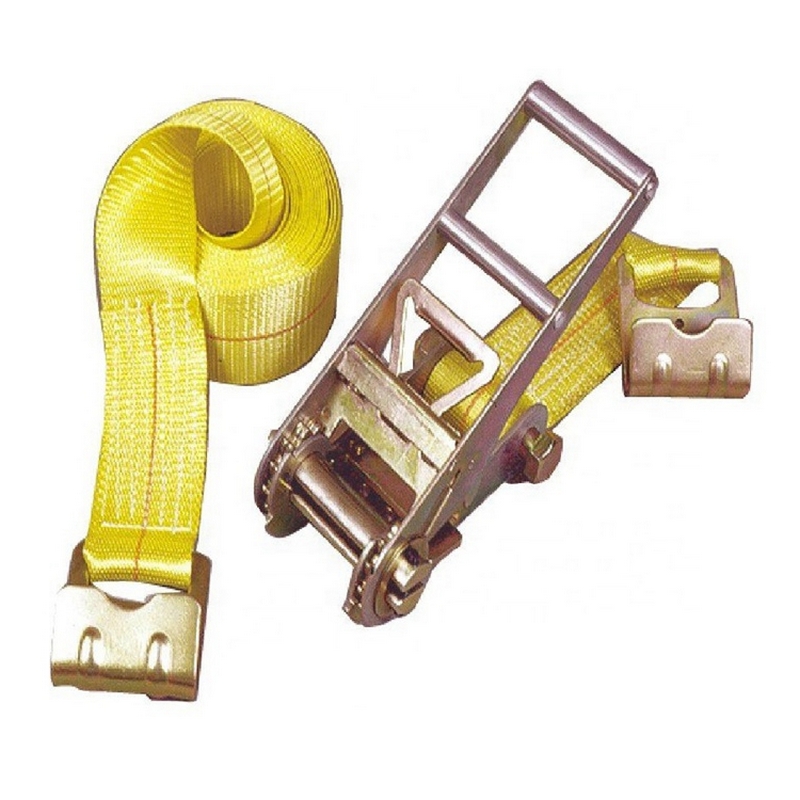

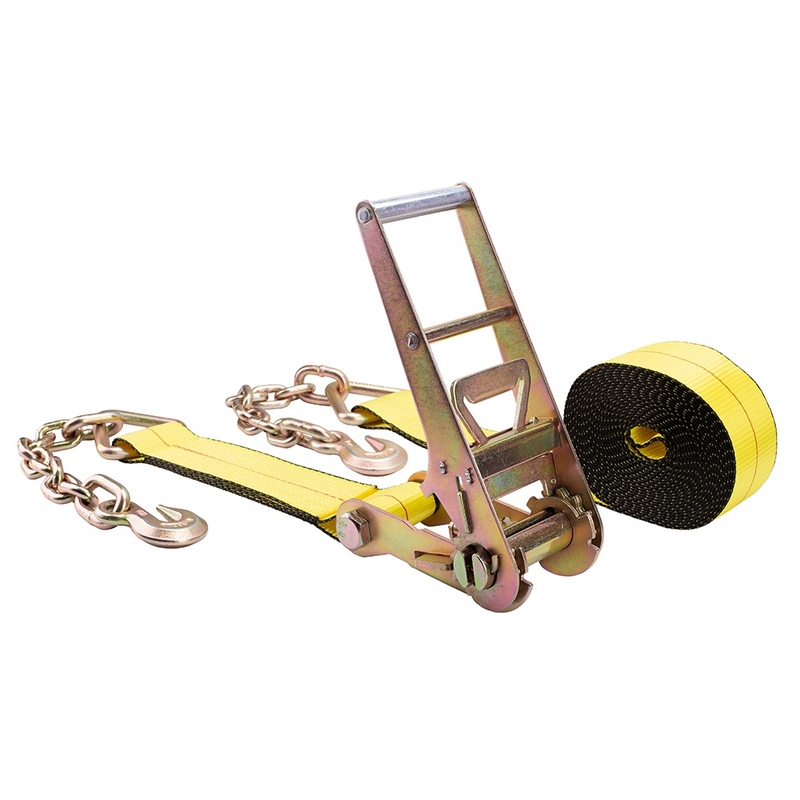

Our 3 inch heavy duty ratchet strap could be suitable for many types of end fittings for different applications. Such as flat hook, claw hook, chain anchors .etc.
Orange and yellow are the most common polyester webbing colors, customized colors are also available.
| Item Code | Size | Surface Treatment | WLL
(Working Load Limit) |
BS
(Break Strength) |
Standard | Color Option | Hook Option |
| CY-TD-RB-7501 | 3 inch | Aluminium handle | 4,000 daN | 8,000daN | EN12195-2
AS/NZS 4380:2001 WSTDA-T-1 |
 |
 |
| CY-TD-RB-7502 | Aluminium handle | 5,000 daN | 10,000daN |
3 inch heavy duty ratchet strap is widely used for heavy load security. Such as flatbed trucks, Van trailers lashing cars, motorcycles and other loads for safe transportation.
3 inch heavy duty ratchet strap ratchet buckle, hooks and Replacement Straps are Supplied separately available.
The whole ratchet tie down and OEM is welcomed.
Kindly contact us for more details.
